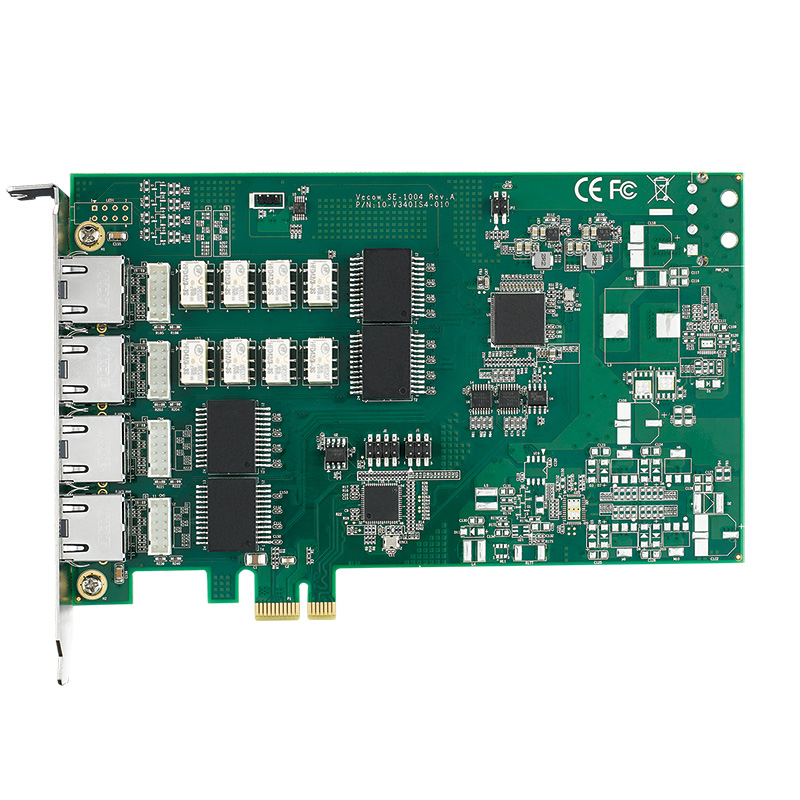

SE-1014
產品介紹
Powered by Intel? Ethernet Controller I210, 4-port Gigabit LAN Switch/IEEE 802.3at PoE+, supports LAN bypass mode, Industrial-grade -40°C to 85°C Operating Temperature, Vecow SE-1000 series expansion card is your flexible solution for Intelligent Surveillance, In-Vehicle Management, ITS (Intelligent Transportaiton System), Industrial Ethernet, Mobile DVR/NVR or any industrial-grade networking applications.
產品特性
Intel? Ethernet Controller I210 supports full-featured LAN functions, up to 1000Mbps data rate
All-in-one, fully-integrated single-chip GigE switching solution with lower power consumption
Industrial-grade, -40°C to 85°C Operating Temperature
PCI Express x1 Interface
Supports hardware LAN Bypass mode
IEEE 1588 Precision Time Protocal (PTP) & IEEE 802.1AS Precision Time Synchronization compliant
IEEE 802.3az Energy Efficient Ethernet (EEE) compliant
IEEE 802.1Qav traffic shaper compliant
Up to 9728 bytes Jumbo Frame
Link Aggregation (LAG)
技術參數
| Ethernet | |
| Interface | PCI Express x1 |
| Controller | Intel? Ethernet Controller I210 |
| Controller Qty | 1 |
| Data Rate | 10/100/1000 Mbps |
| Number of Port | 4 |
| Jumbo Frame | Up to 9728 bytes |
| Link Aggregation (LAG) | Present |
| Connector | 8-pin RJ45 |
| Software Support | |
| OS Support | Windows 10, Windows 8.1, Windows 7, Linux |
| Power Connector | 1 4-pin 12V Power Connector |
| Mechanical | |
| Dimension (W x D x H) | 168mm x 121mm (6.6" x 4.8") |
| Bracket | Full height |
| Environment | |
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @ 85°C |
| EMC | CE, FCC |
